The set is specially designed for negative copying and converts film to digital files.
It can be used to photograph 35mm film and is compatible with the following select CAN., NIK., SON., Laowa and OLY. lenses 1:
CAN. EF 100mm f/2.8L Macro IS USM Lens [requires supplied Adapter 4# and Adapter 2# (2pcs)]
CAN. RF 100mm f/2.8L Macro IS USM Lens (requires supplied Adapter 4# and Adapter 2#)
CAN. EF-S 60mm f/2.8 USM Lens [requires supplied Adapter 2# (2pcs)]
CAN. EF 100mm f/2.8 Macro USM Lens [requires supplied Adapter 8# and Adapter 2# (2pcs)]
NIK. AF Micro-NIKKOR 60mm f/2.8D Lens (requires supplied Adapter 3# and Adapter 2#)
NIK. NIKKOR Z MC 50mm f/2.8 Macro Lens (requires supplied Adapter 3#)
NIK. AF-S DX Micro NIKKOR 40mm f/2.8G Lens
NIK. NIKKOR Z MC 105mm f/2.8 VR S Macro Lens (requires supplied Adapter 3# and Adapter 2#)
SON. FE 50mm f/2.8 Macro Lens (requires supplied Adapter 5#)
SON. FE 90mm f/2.8 Macro G OSS Lens [requires supplied Adapter 3# and Adapter 2# (2pcs)]
Laowa 50mm f/2.8 2X Ultra Macro APO Lens (requires supplied Adapter 2# and Adapter 7#)
Laowa 60mm f/2.8 2X Ultra-Macro Lens (requires supplied Adapter 3#)
Laowa 65mm f/2.8 2x Ultra Macro APO Lens (requires supplied Adapter 2#)
Laowa 85mm f/5.6 2x Ultra Macro APO Lens (requires supplied Adapter 6#)
Laowa 100mm f/2.8 2X Ultra Macro APO Lens (requires supplied Adapter 4#)
OLY. M.Zuiko Digital ED 60mm f/2.8 Macro Lens (requires supplied Adapter 2# and Adapter 6#)
The supplied adapters allow you to attach the set to different lenses and the angle of view and tilt can be adjusted by using the view angle adjustment ring on the barrel. Dedicated film holders for both film strips and mounted slides2 are included, as well, to help hold the film taut and to benefit handling. Besides that, the set is particularly well-suited for the NIK. D850 camera due to its dedicated Negative Digitizer mode and ability to automatically reverse colors in-camera to expedite the digitizing process. Additionally, you can use the set together with the included LED Light3 to get high quality light source and improve image sharpness.

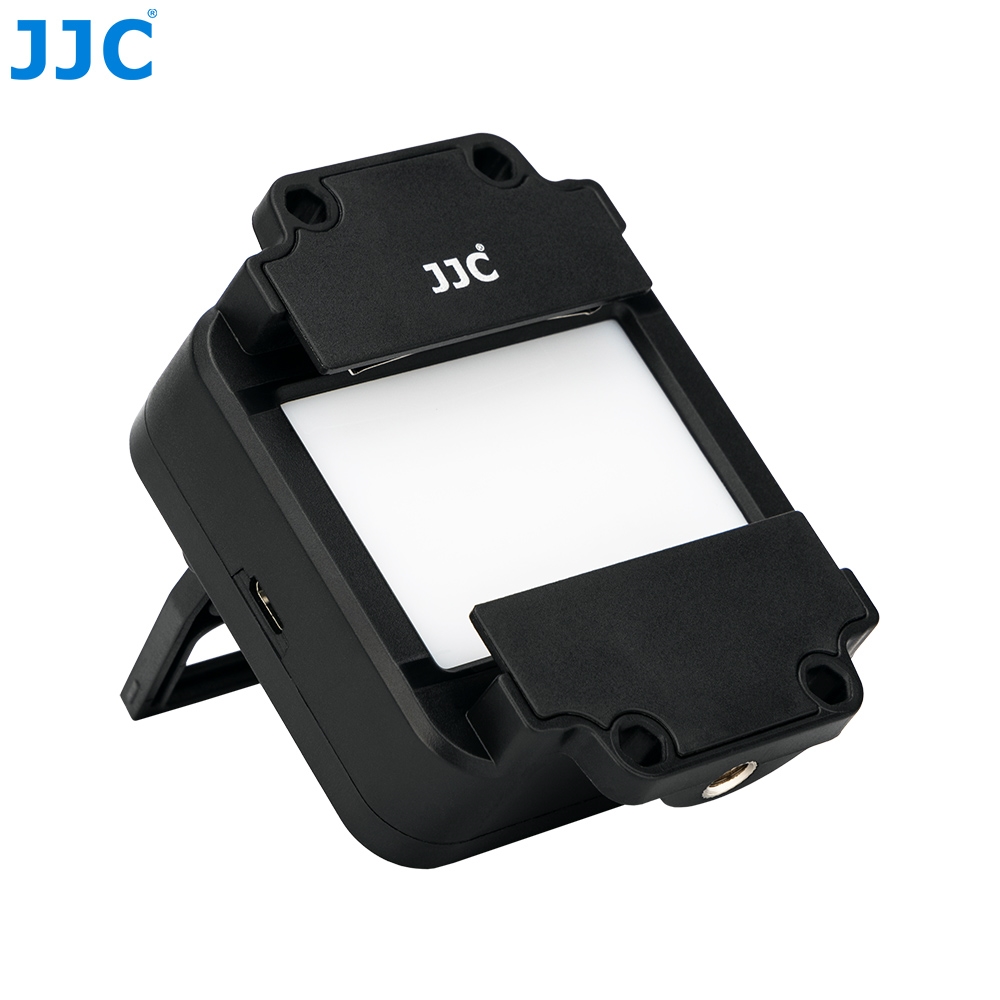

The supplied LED light features 42 built-in ultra-bright LEDs and those LEDs are covered with a screen to produce a soft and even light. The color difference can be effectively reduced for the LED's 95+ color rendering index and 6500K color temperature. Besides that, the connection cable of the LED is about 1.5m / 4.9' and it requires a 5V-2A USB power adapter (not included) for power supply. The controller on the cable allows you to turn on or turn off the LED and enables you to adjust the brightness of this light (the brightness has 10 levels available). You can insert the slide mount holder or strip film holder into the holder insertion slot on the LED to provide high quality light source when carrying on a negative copying. Additionally, the support on its back is designed for using on a flat surface; the 1/4"-20 female thread on the bottom is designed for mounting on a tripod or stand.
Product Highlights
Specially designed for negative copying
Converts film to digital files
For use with select CAN., NIK., SON., Laowa and OLY. lenses
Holds 35mm film strips and slides
Includes a LED light to get high quality light source and improve image sharpness
Note:
1.It is recommended to select the image stabilizer switch of the lens to "OFF" when using the FDA-S1.
2.The slide mounts are not included.
3.Do NOT place the film in front of the turned-on LED light for a long time to avoid damage.
Specifications
LED Light
Net Weight: approx. 73g
Dimension: 71 x 91.2 x 52.8mm / 2.8 x 3.6 x 2.1"
Material: ABS
LED Quantity: 42
Color Rendering Index(CRI): 95+
Color Temperature: 6500K
Illuminance: 10cm / 3.9" , 6392lux; 20cm / 7.9", 1473lux; 30cm / 11.8", 988lux
Brightness: 10 levels
Power Draw: 7.5W
Interface: Micro USB
Cable Length: approx. 1.5m / 4.9'
Slide Mount Holder
Holds two mounted 35mm slides
Net Weight: approx. 16g
Dimension: 155 x 52 x 4.7mm / 6.1 x 2.0 x 0.2"

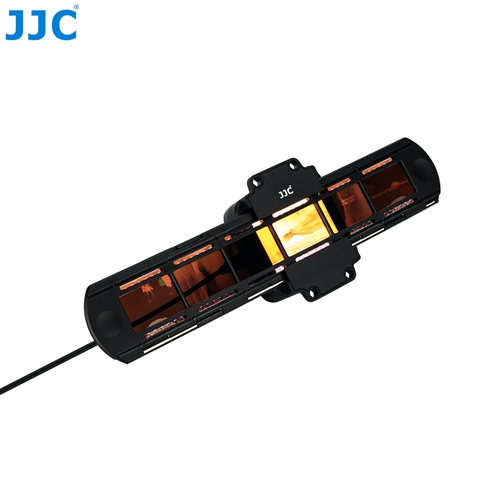

Strip Film Holder
Holds six-frame strip of 35mm film
Net Weight: approx. 35g
Dimension: 275 x 52 x 4.7mm / 10.8 x 2.0 x 0.2"

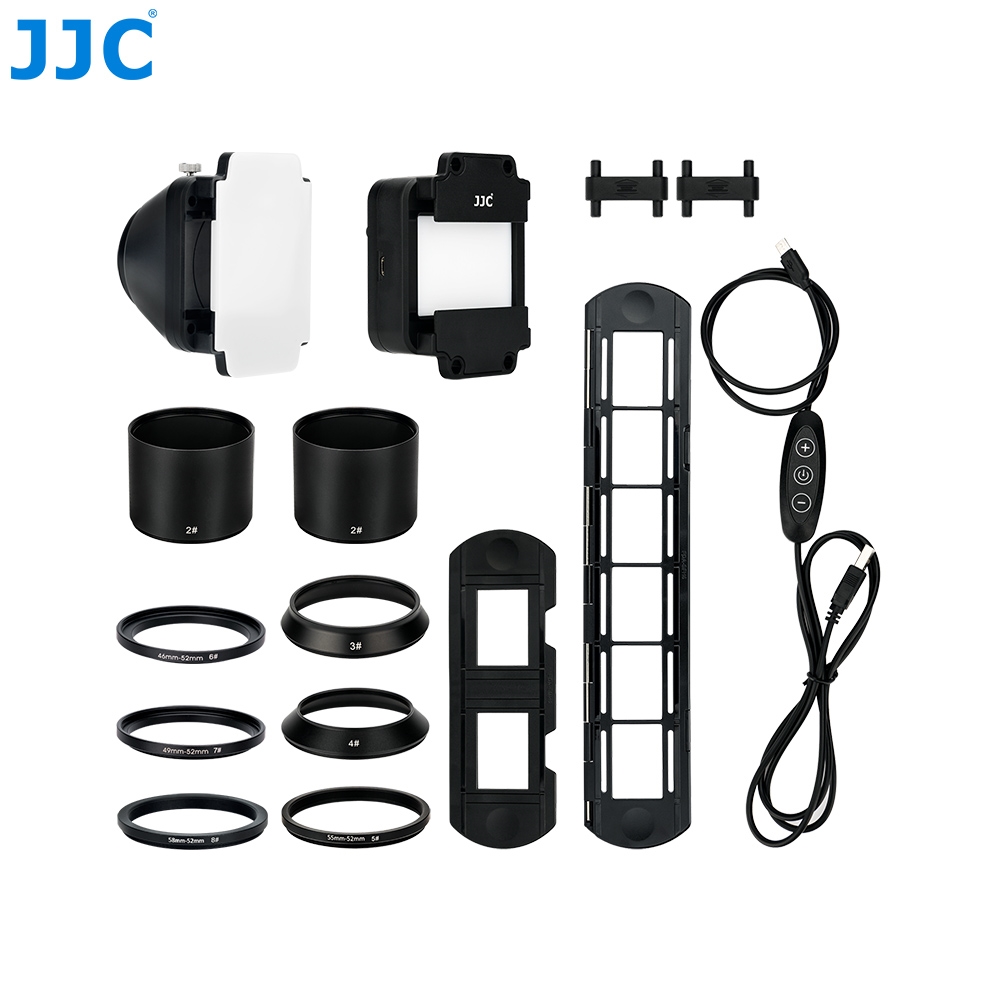

Package Includes
Barrel 1# x 1
52~52mm Adapter 2# x 2
62~52mm Adapter 3# x 1
67~52mm Adapter 4# x 1
55~52mm Adapter 5# x 1
46~52mm Adapter 6# x 1
49~52mm Adapter 7# x 1
58~52mm Adapter 8# x 1
Slide Mount Holder x 1
Strip Film Holder x 1
LED Light x 1
Instruction Manual x 1
